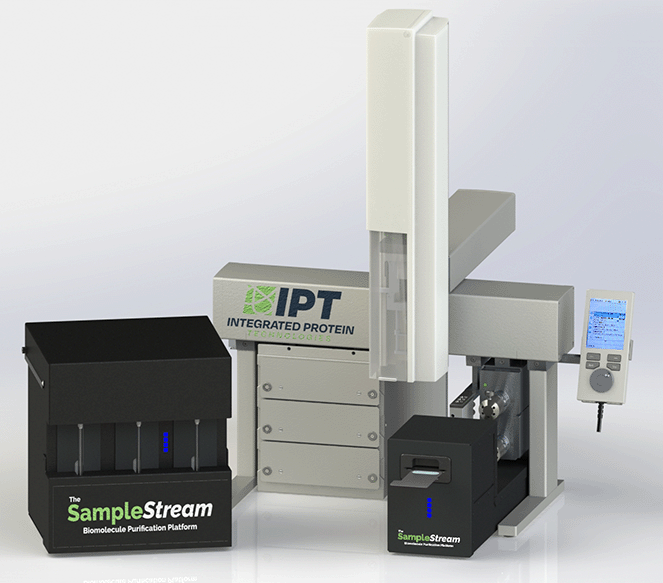

Small Footprint. Huge Possibilities.
Flow Cell Module
The flow cell module is the heart of the SampleStream platform. It contains the pneumatic, temperature control, RFID, and pressure monitoring systems along with the flow cell itself. Together, these components create a simple-to-use system with powerful monitoring and diagnostic capabilities that not only ensure repeatable and reliable performance, but also provide rich diagnostic information when required. (Click to Enlarge)

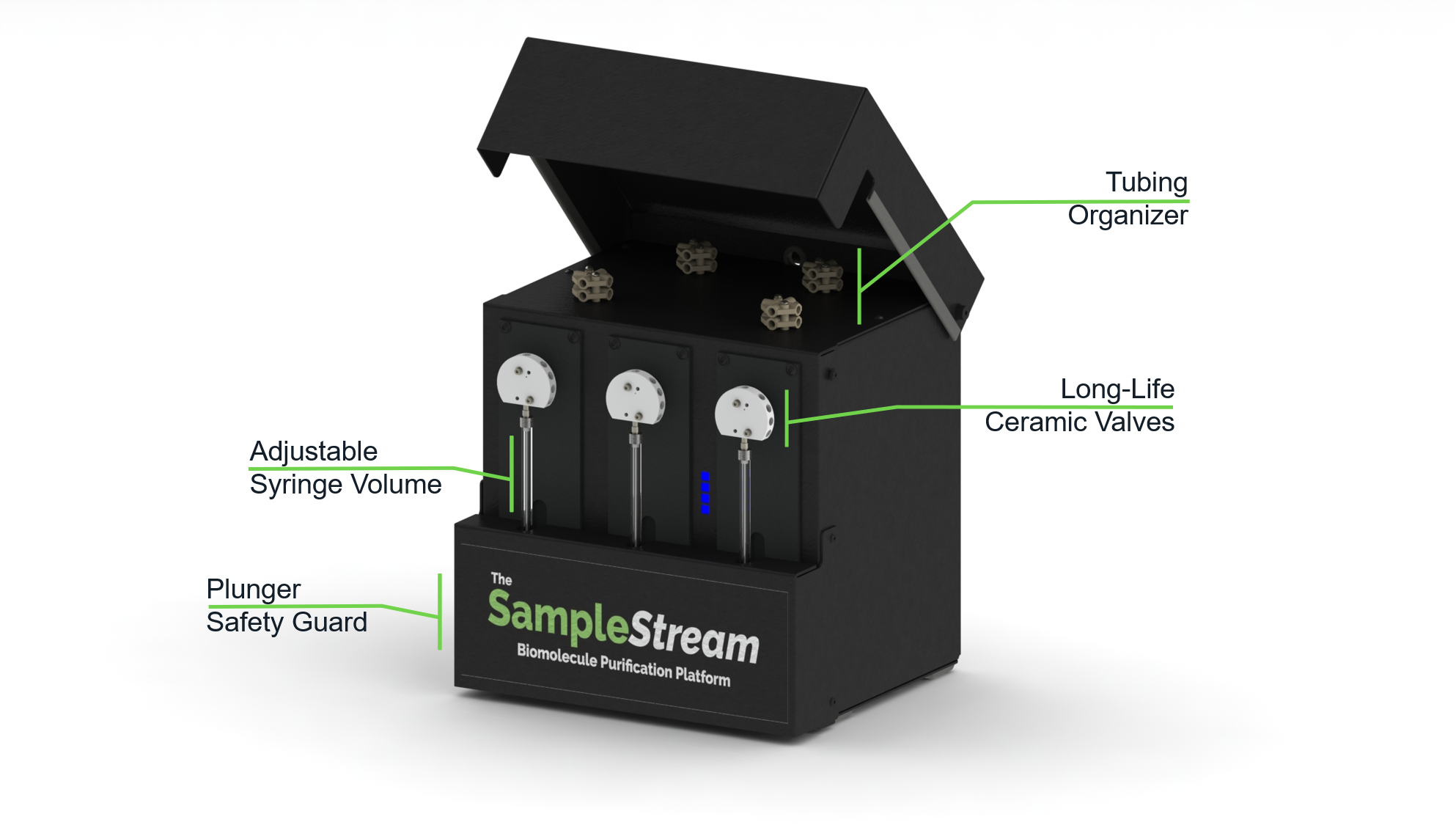

Pump Box Module
The pump box module provides extreme flexibility with extreme robustness. Utilizing time-tested, low-pressure, syringe pump technology, the pump box can address up to 5 different solvent. With this flexibility, multiple different workflows can be executed with the only change being the method the operator selects. With a wide range of syringe volumes available, the minimum and maximum flow rates as well as total volume available per operation can be adjusted to match nearly any experimental requirement. All of this comes in a tidy package with an integrated tubing organizer to keep your lab looking as good as the data it produces. (Click to Enlarge)

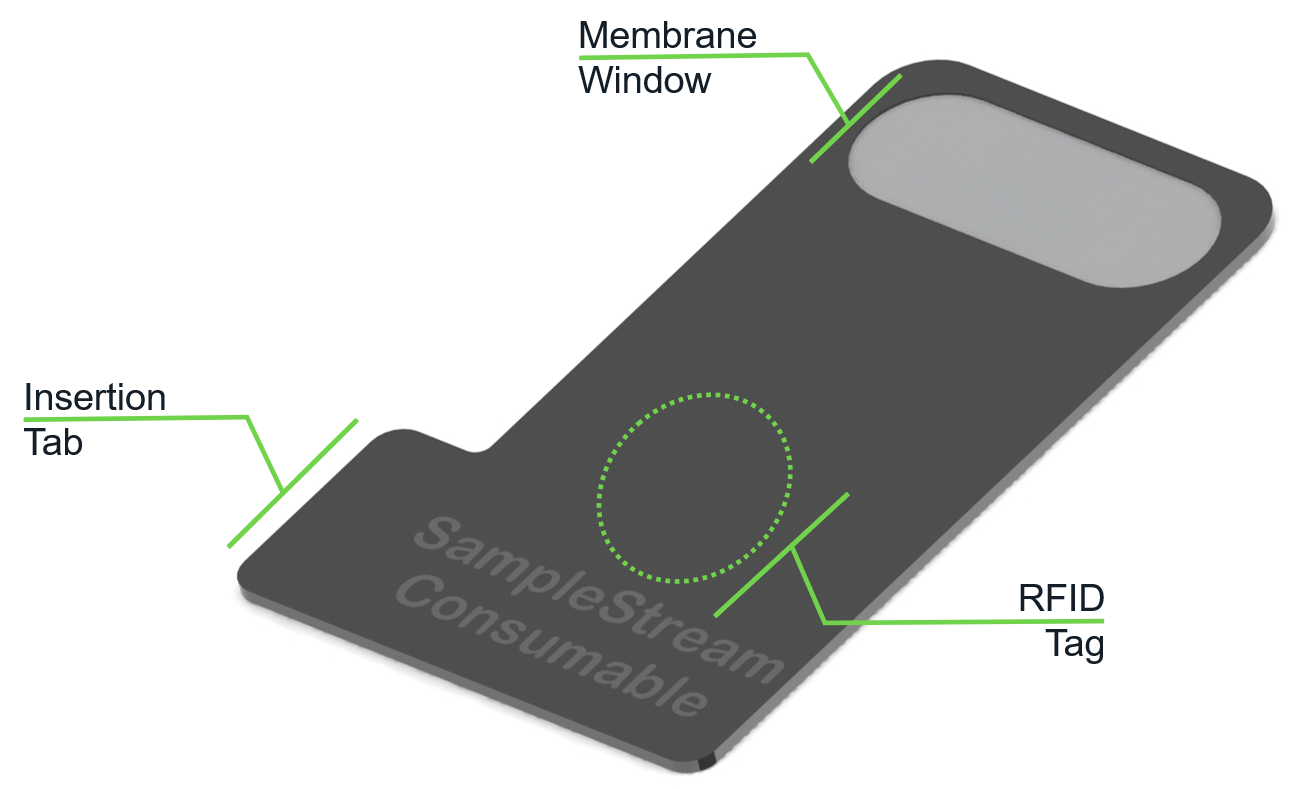

An Intelligent Consumable
The easy to use consumable makes membrane installation as simple as using your credit card. Simply insert the consumable to the hard stop. The insertion tab enforces proper orientation and an optical sensor ensures the consumable is properly positioned over the flow cell’s sealing surfaces. With a click of a button, the RFID tag is read, importing all of the information required to operate the system, including the membrane type, minimum and maximum flow rates, sealing pressure and more into software. Following validation, the pneumatic sealing system is actuated and you’re ready to run! (Click to Enlarge)

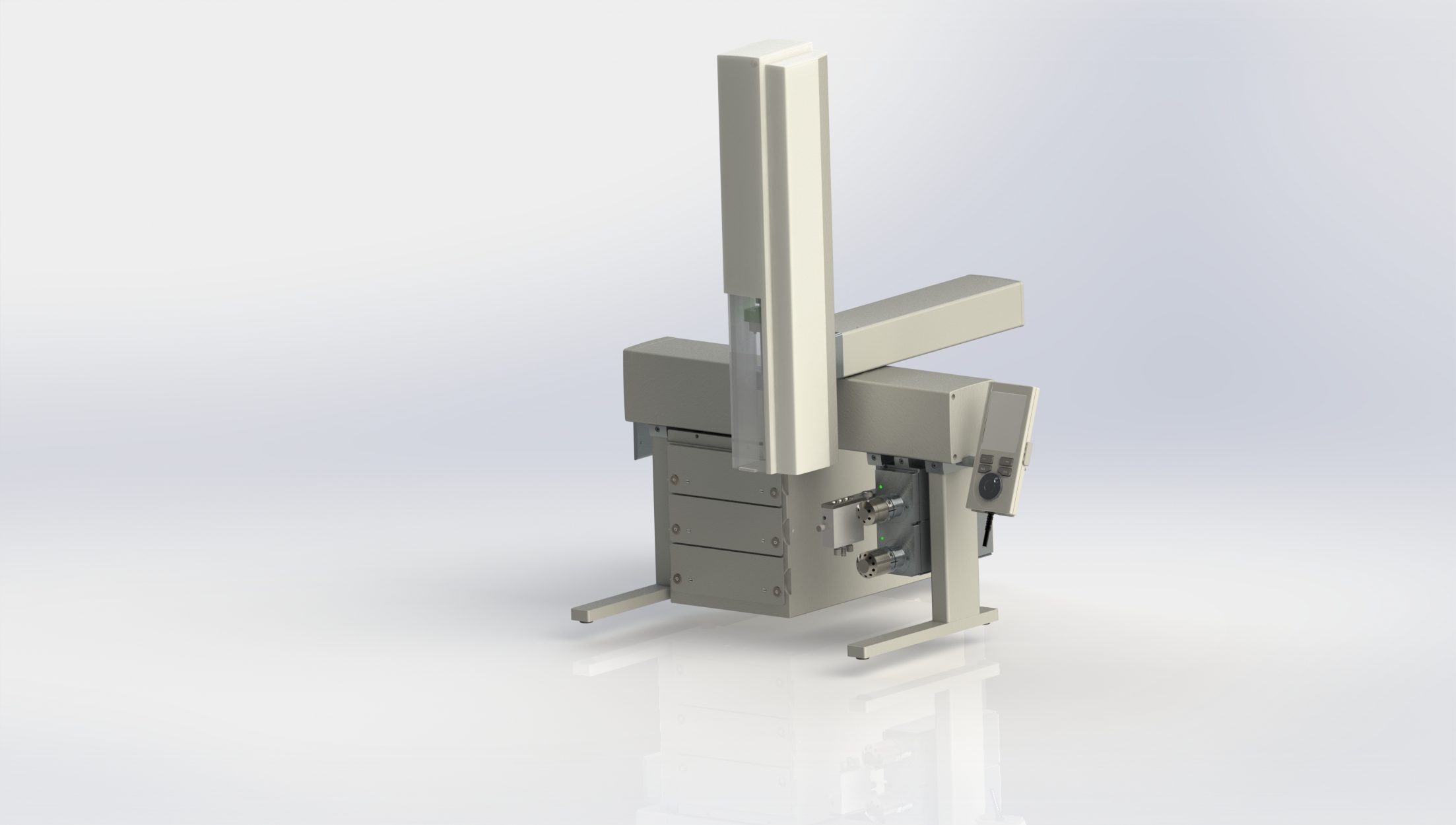

CTC PAL3 Robot
The PAL 3 Series II from CTC is the industry gold-standard for sample handling. With a fully configurable rail system that can mount modules ranging from a Peltier cooled sample storage stack to a 2D barcode reader, the PAL 3 Series II is a capable sample preparation system all on its own. The more than 50,000 units in operation worldwide are a testament to the reliability and efficacy of the PAL system. Together with the capabilities of the SampleStream Flow Cell and Pump Box modules, the combined platform represents a high-performance, flexible workflow solution that can execute a broad range of experiments. (Click to Enlarge)
